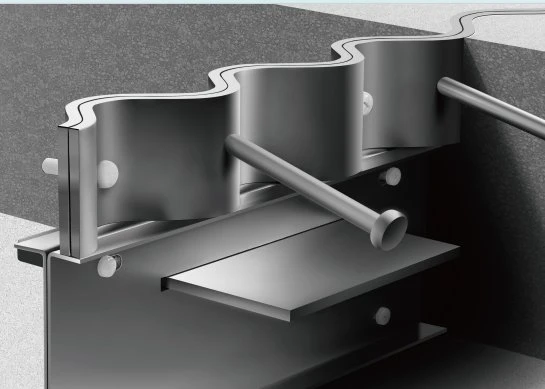

Sinusoidal Armored Joint Pavement
The Armored Joint uses a unique technology that allows the Armored Joint to have the same load-bearing capacity as the entire concrete floor. The top section consists of two 0.2" (5mm) thick corrugated cold-rolled steel profiles.
- Product Introduction
The Armored Joint uses a unique technology that allows the Armored Joint to have the same load-bearing capacity as the entire concrete floor. The top section consists of two 0.2" (5mm) thick corrugated cold-rolled steel profiles. Instead of conventional anchor bolts, the joint is anchored into the concrete via a technologically advanced continuous reinforcement system that weaves itself along the total length of the joint. To prevent concrete spillage, an adjustable steel plate is located between the two halves of the joint.
Places of Application
Industrial floors
Logistics and distribution centers
Industrial buildings
Industrial storage facilities
Airports
Details
1. Two high specification solid, cold drawn 40mm deep x 10mm thick steel armour edge strips with sharp corners for clean finish to concrete.
2. Diameter 10mm x 100mm long, shear studs for anchorage into concrete.
3. Unique asymmetric dowel, high grade 355N/mm2 steel for superior load transfer and maximum 30mm joint openings.
4. Cold rolled steel plate.
5. High density plastic sleeve for release of dowel in concrete, with ± 20mm parallel movement along joint and 30mm perpendicular to joint.
